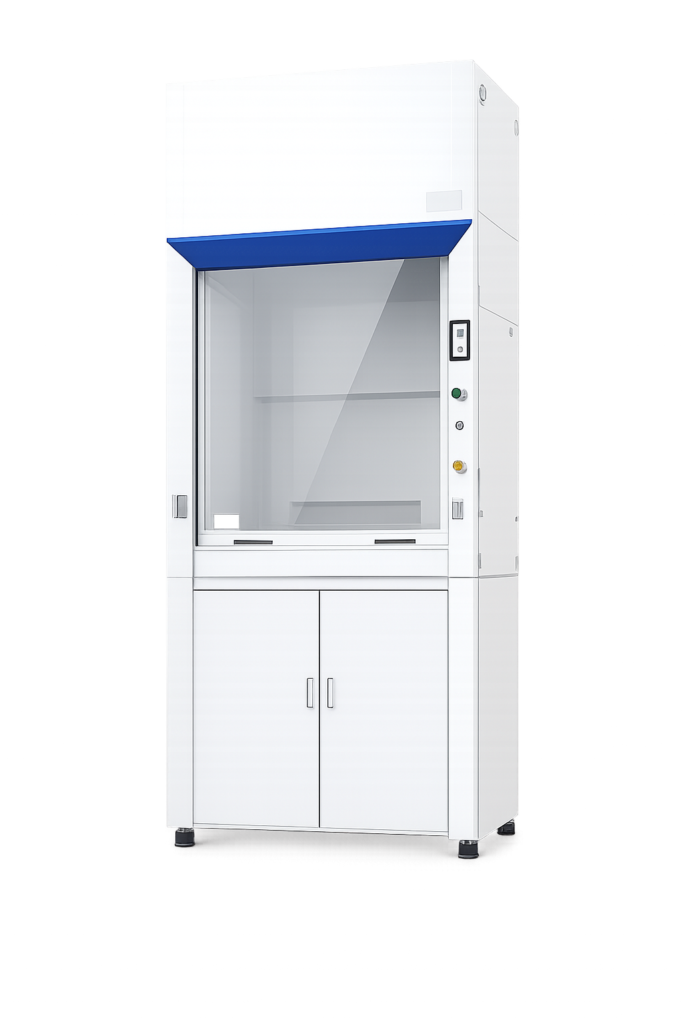

Designed for modern laboratories, this fume hood ensures safe containment and exhaust of hazardous fumes, vapors, and chemicals. Built with GMP-grade materials and precision airflow control, it provides a secure and efficient working environment.
Maintains stable airflow for safe and consistent fume extraction in controlled environments.
Manufactured with SS 304 and powder-coated CRCA sheets for long-lasting performance.
Equipped with fail-safe sash system and chemical-resistant interiors for operator protection.
|
Specification
|
Description
|
|---|---|
|
Design Structure
|
|
|
Inside Fume Hood Interior
|
Laminate sheet
|
|
Airflow Type
|
Low Constant Volume (for A.C.environment)
|
|
Construction (Exterior)
|
Anti-corrosive Powder coated (70 to 80 microns)
durable, 1.2mm & 1.0mm heavy duty CRCA (as per
IS: 513) sheets with rigid structure/M.S. Steel 20
Gaze Anti Corrosive Powder Coated.
|
|
Construction (Exterior) GMP MODEL
|
Outer body made up of complete SS 304
|
|
Construction (Interior)
|
Chemical (especially strong acid like H2SO4 and
HNO3) resistant & Heat Resistant, Fire Retardant,
Smooth Finish, Easily Cleanable Panels.
|
|
Worktop
|
Jet black granite 20 mm thignes
|
|
Sash (Shutter)
|
Vertical rising counter-balanced sash. Toughened
Float Glass sash(6 mm thick). Clear openable height =
700 mm. Fail safe device - Shutter fail-safe locking
arrangement to prevent sudden breakdown of shutter.
|
|
Wet & Dry Service fittings
|
colour coded Needle Valves for fine control over
utilities total 2 nos
1 for Water
2 for gas
6mm internal dia, withstands up to 15 kgf pressure
and brass fittings for gas connections on left hand side
Water connection with basin provided
|
|
Lighting
|
Fluorescent light (40 watt, 1 Nos.) with vapourproof fitting for proper illumination.
|
|
Electrical Utilities
|
Two nos. electrical sockets (230 V, 6/16 A,50 Hz)
and switch light switch on front facia. Cables &
wires 'Fire Retardant'grade. On right hand side
|
|
Cable entering port
|
For easy access of cables from fume hood to
electrical sockets.
|
|
Level adjusting screws
|
Made of p p Bolts to adjust the fume hood level
by ±10 mm.
|
|
INSTALLATION:
|
Should be carried out by your skilled team with
ductwork design, fitting,
|
|
WARRANTY.
|
12 months warranty against all manufacturing
defects from the date of installation
|
|
Blower
|
with IPH 3 Phase PP Blower installation Change extra applied
|
Savings her pleased are several started females met. Short her not among being any.
Timeline
Feedback
"Sentiments two occasional affronting solicitude travelling and one contrasted. Fortune day out married parties. Happiness remainder joy but earnestly for off. Took sold add play may none him few. If as increasing Sentiments two occasional affronting solicitude traveling and one contrasted. Fortune day out married parties. "
"Unpacked now declared put you confined daughter improved. Celebrated imprudence few interested especially reasonable off one. Wonder bed elinor family secure met. It want gave west into high no in. Depend repair met before man admire see and. An he observe be it covered delight hastily message."
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper.
A fume hood is used to safely contain and exhaust hazardous fumes, vapors, and chemicals to protect users and maintain air quality.
Yes, it is designed with GMP-compliant materials and construction, making it ideal for regulated environments.
It uses a low constant volume airflow system, ensuring stable and efficient fume extraction.
Yes, configurations like size, blower system, and additional fittings can be customized as per laboratory requirements.
